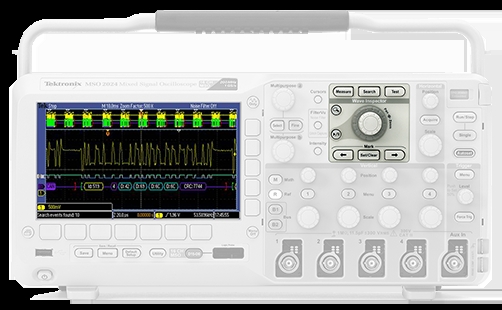

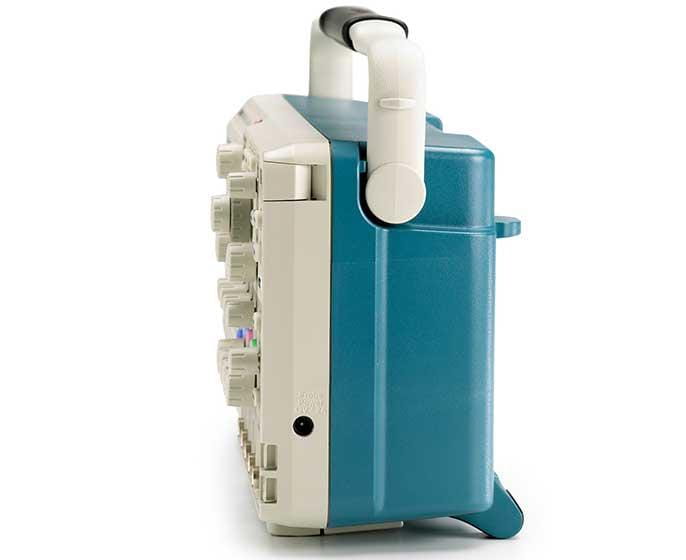

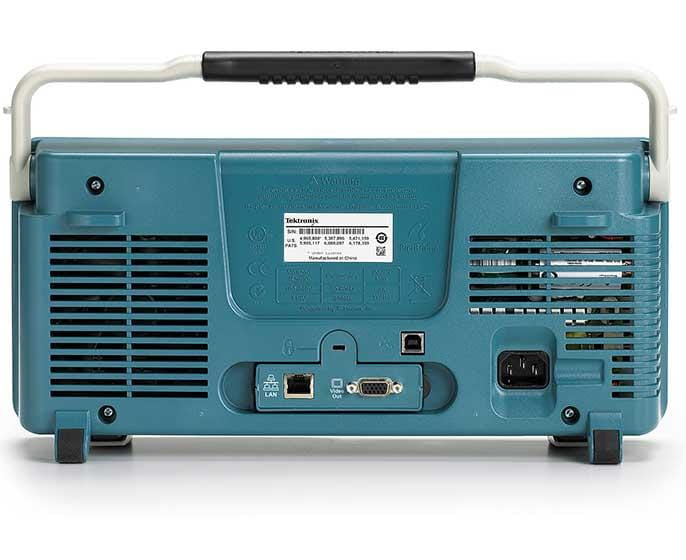

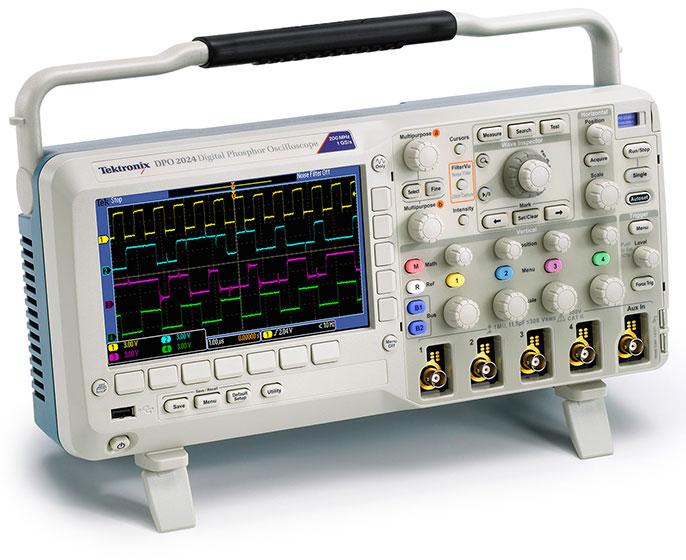

I-Tektronix MSO2000B / DPO2000B I-Oscilloscope Yesiginali Ehlanganisiwe

I-Tektronix MSO2000B / DPO2000B I-Oscilloscope Yesiginali Ehlanganisiwe

BANDWIDTH Kufika ku-200 MHz

IREKHODI UBUDE 1 Mpoints

IZITESHI ZE-ANALOGU 2 noma 4

ISAMPULA RATE 1 GS/s kuzo zonke iziteshi

Uchungechunge lwe-MSO/DPO2000B Mixed Signal Oscilloscope luwububanzi obunamandla kakhulu esigabeni salo esinezici ezithuthukisiwe zokususa iphutha ngentengo yezinga lokungena. Ngamashaneli angaba ngu-20, ungakwazi ukuhlaziya amasignali e-analog nedijithali ngethuluzi elilodwa. Hlanganisa lokho nokuhlaziya okuzenzakalelayo kwe-serial kanye nebhasi elihambisanayo kanye nezilawuli ezintsha ze-Wave Inspector®, uthola amathuluzi owadingayo ukuze usheshise ukulungisa iphutha lakho.

XHUMANA NATHI

Ikheli lakho le-imeyili ngeke lishicilelwe. Izinkambu ezidingekayo zimakwe *

incazelo

Imodeli	Umkhawulokudonsa we-Analogi	Isilinganiso Sesampula	Ubude berekhodi	Iziteshi ze-Analog	Iziteshi Zedijithali	Uhlu Lwezintengo
DPO2002B	70 MHz	1 GS/s	1 Amaphuzu	2	-	Lungiselela & Quote
DPO2012B	100 MHz	1 GS/s	1 Amaphuzu	2	-	Lungiselela & Quote
MSO2002B	70 MHz	1 GS/s	1 Amaphuzu	2	16	Lungiselela & Quote
DPO2004B	70 MHz	1 GS/s	1 Amaphuzu	4	-	Lungiselela & Quote
DPO2022B	200 MHz	1 GS/s	1 Amaphuzu	2	-	Lungiselela & Quote
MSO2012B	100 MHz	1 GS/s	1 Amaphuzu	2	16	Lungiselela & Quote
DPO2014B	100 MHz	1 GS/s	1 Amaphuzu	4	-	Lungiselela & Quote
MSO2004B	70 MHz	1 GS/s	1 Amaphuzu	4	16	Lungiselela & Quote
DPO2024B	200 MHz	1 GS/s	1 Amaphuzu	4	-	Lungiselela & Quote
MSO2022B	200 MHz	1 GS/s	1 Amaphuzu	2	16	Lungiselela & Quote
MSO2014B	100 MHz	1 GS/s	1 Amaphuzu	4	16	Lungiselela & Quote
MSO2024B	200 MHz	1 GS/s	1 Amaphuzu	4	16	Lungiselela & Quote

Thola, Lungisa iphutha futhi Hlaziya Ngokushesha

Bheka amaphuzu amaningi ekwakhiweni kwakho ngeziteshi ze-analog ezi-4 neziyi-16 zedijithali kanye namagagasi amabhasi angu-2. Thola okudidayo ngokushesha ngesibonisi se-digital phosphor nezinhlanganisela ze-trigger ezingu-125, futhi usebenzise i-Wave Inspector ukuze udlulele kumaphoyinti e-waveform angu-1M, usondeze eduze, umaka amaphuzu ozithandayo, futhi uzulazule usuka kumaki uye kumaki. Futhi: I-FilterVu yehlisa umsindo, hhayi ama-glitches.

Khohlwa Ngama-Manually Decoding Serial Buses

Yehlisa amaphutha futhi wonge isikhathi ngokuqopha okuzenzakalelayo kwe-serial ibhasi. Futhi, amamojula ochungechunge ongazikhethela wokucupha kanye nokukhipha amakhodi enza ngokuzenzakalelayo ukuqalisa kokuqukethwe kwephakethe elithile, bese abonisa idatha kuma-waveform e-analog nokubukwa kwebhasi ukuze uthole imininingwane esheshayo. Futhi kuyatholakala: izinketho zamabhasi e-serial ahamba phambili kwezezimoto, umklamo oshumekiwe kanye nezinhlelo zokusebenza zekhompyutha.

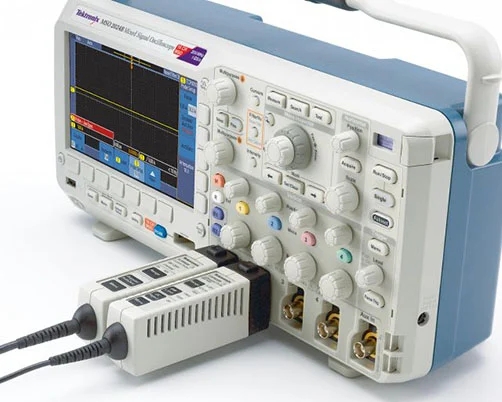

I-Probe Interface Enwebisa Amathuba

I-interface ye-Tek VPI probe ihlinzeka ngohlelo lokusebenza olubanzi futhi akudingeki ukhathazeke ngezici zesikali. Sebenzisa anhlobonhlobo ama-probe asebenzayo futhi amanje axhumana ngokuzenzakalela izici zesikali, anike amandla i-deskewing elula futhi anikeze ulwazi lwe-probe kusibonisi sobubanzi.

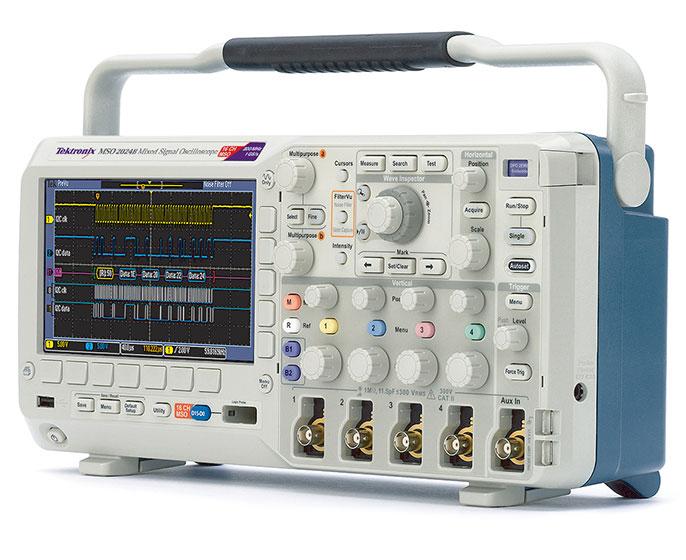

Enza Lula Ukulungisa Okuxubile Kwesiginali

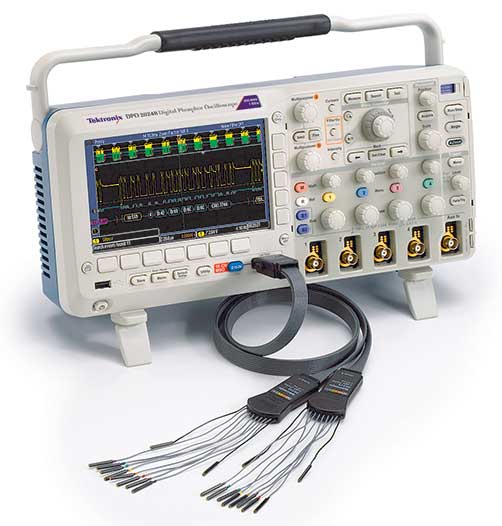

Susa iphutha lemiklamo yesignali exubile eneziteshi ezi-4 ze-analog neziyi-16, ezihambisana nesikhathi. Hlanganisa iziteshi zedijithali ukukhombisa amabhasi ahambisanayo noma ukhiphe ikhodi yamabhasi e-serial. Engeza ku-P6316 logic probe ukuze wenze kube lula ukuxhuma kumklamo wakho futhi ulandelele amasignali.

Amaphuzu avelele

Iziteshi ezingu-16 ezihlanganiswe ngokugcwele, zonke zinesilinganiso samasampula esingu-1GS/s.
Kulula ukusebenzisa ukusebenza kwe-logic analyzer.
Chaza amabhasi ahambisanayo noma ama-serial wokucupha nokukhipha amakhodi.
Ukubuka ngeso lengqondo okulula ngokuqoqwa kwe-waveform nokufakwa kwekhodi kombala.

Kungani Usikhethe:

1. Ungathola impahla ephelele ngokuvumelana nemfuneko yakho okungenani inani elingenzeka.

2. Siphinde sinikeze ama-Reworks, i-FOB, i-CFR, i-CIF, nezintengo zokudiliva umnyango nomnyango. Siphakamisa ukuthi wenze isivumelwano sokuthunyelwa okuzokonga kakhulu.

3. Izinto esizihlinzekayo zingaqinisekiswa ngokuphelele, kusukela kusitifiketi sokuhlolwa kwempahla engavuthiwe kuya esitatimendeni sobukhulu bokugcina.(Imibiko izovela ngokwemfuneko)

4. isiqinisekiso sokunikeza impendulo phakathi namahora angu-24(imvamisa ngehora elifanayo)

5. Ungathola ezinye izindlela zesitoko, ukulethwa kwezigayo ngokunciphisa isikhathi sokukhiqiza.

6. Sizinikele ngokugcwele kumakhasimende ethu. Uma kungeke kwenzeke ukuhlangabezana nezidingo zakho ngemva kokuhlola zonke izinketho, ngeke sikudukise ngokwenza izithembiso ezingamanga ezizodala ubudlelwano obuhle namakhasimende.

Ukuqinisekisa Ikhwalithi (okuhlanganisa kokubili Okubhubhisayo Nokungabhizi)

1. Visual Dimension Test

2. Ukuhlolwa kwemishini njengokushuba, Ukwelula kanye nokunciphisa indawo.

3. Ukuhlaziywa komthelela

4. Ukuhlaziywa kokuhlolwa kwamakhemikhali

5. Ukuhlolwa kokuqina

6. Ukuhlolwa kokuvikela umgodi

7. Ukuhlolwa Okungenele

8. I-Intergranular Corrosion Testing

9. Ukuhlolwa Kokuqina

10. Ukuhlolwa Kokuhlolwa Kwe-Metallography
