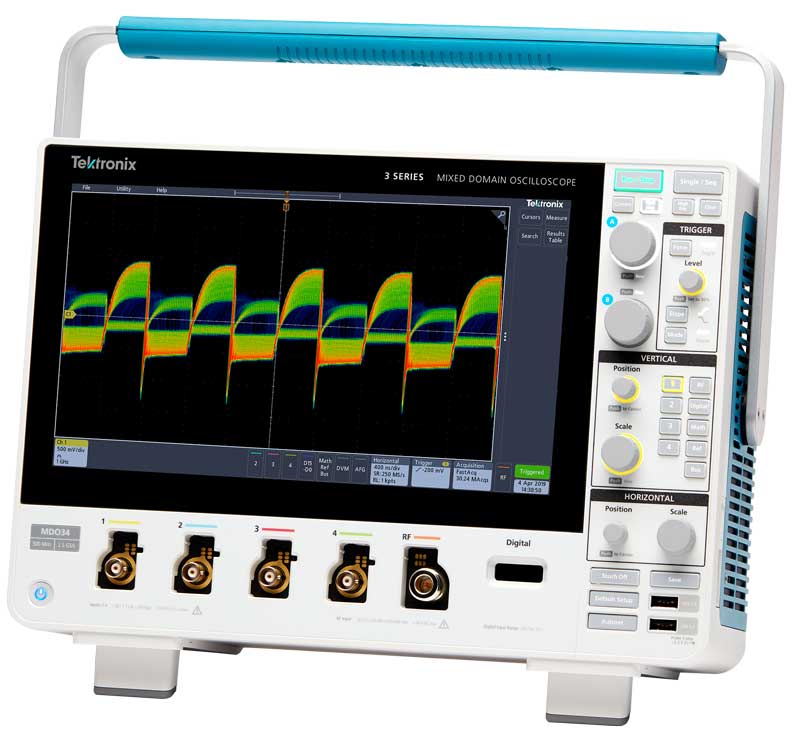

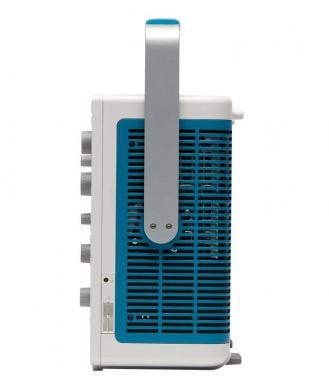

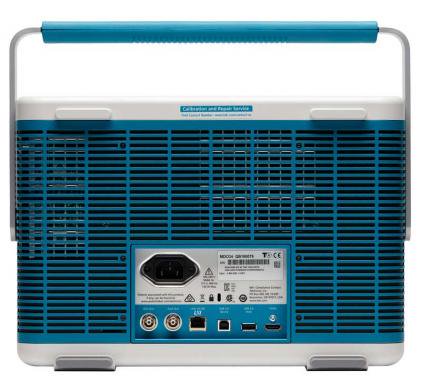

I-Tektronix 3 Series MDO Mixed Domain Oscilloscope

Ukusebenza kwe-Probe ehamba phambili embonini

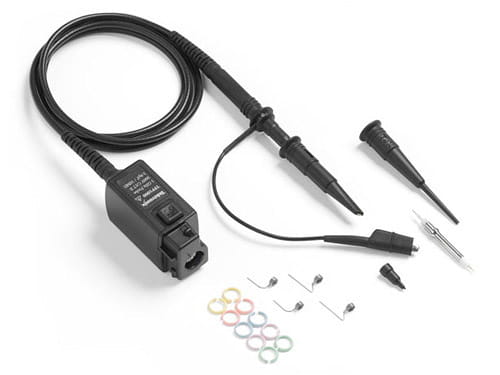

Ama-probe akufanele ashaywe indiva njengento eyinhloko endleleni yesignali yokulinganisa. Uma uthenga i-3 Series MDO uthola ama-probes angcono kakhulu embonini mahhala. Kufakwe nokulayisha okuhamba phambili embonini okungu-3.9 pF ku-oscilloscope yakho, ama-TPP Series probe azoba uhambo lwakho lokuphenya ukuze ulusebenzise nsuku zonke.

Amaphuzu avelele

• Ama-TPP Series probes afaka okujwayelekile. Ishaneli eyodwa ye-analog.

• Ukulayishwa kwe-Industry-best capacitive probe okungu-3.9 pF

• 250 MHz, 500 MHz noma 1 GHz probe umkhawulokudonsa kuye ngomkhawulokudonsa wensimbi

Ukunemba kokulinganisa isignali yezinga eliphansi kuthuthukiswe cishe ngo-40%

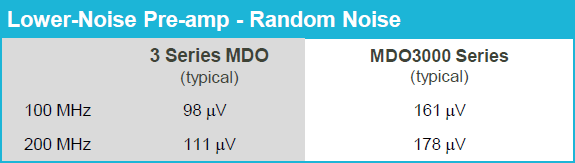

Uma ukala amasiginali weleveli ephansi, kubalulekile ukuthi ube nomsindo wensimbi ophansi ukuze uthole ukunemba okungcono kokulinganisa. Isiphetho esisha esisetshenziswa ochungechungeni olu-3 lwe-MDO singakusiza uthuthukise izilinganiso zomsindo wakho ngokufika ku-40%. Uma uhlola i-oscilloscope, qiniseka ukuthi uhlola ngokucophelela ukucaciswa komsindo okungahleliwe kwe-oscilloscope. Akuwona wonke ama-oscilloscope adalwe alingana, futhi akubona bonke abakhiqizi be-oscilloscope abahlola futhi bashicilele imininingwane yabo yomsindo engahleliwe.

Bona ukucaciswa komsindo okuqinisekisiwe ku-Tektronix 3 Series MDO, kanye nabanye abaningi

Imininingwane ngokubuka nje

Iziteshi zokufaka

• 2 noma 4 analog

• 16 digital1

• 1 i-spectrum analyzer

Umkhawulokudonsa1

• 100 MHz, 200 MHz, 350 MHz, 500 MHz, noma 1 GHz

Isilinganiso Sesampula

• 5 GS/s (imodeli engu-1 GHz), 2.5 GS (zonke ezinye izinhlobo) eziteshini ze-analog

• Kufika ku-8.25 GS/s (121 ps resolution) eziteshini zedijithali

Ubude berekhodi

• 10 Mpoints kuwo wonke amashaneli

I-Spectrum Analyzer1

• 1 GHz ejwayelekile, 3 GHz ozikhethela yona

Ijeneretha Yesiginali1

• I-Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Noise Random, Haversine, Cardiac

I-Voltmeter yedijithali2

• Amadijithi angu-4 we-AC RMS, DC, kanye nezilinganiso zamandla kagesi we-AC+DC RMS

Qalisa i-Frequency Counter2

• izilinganiso zamadijithi angu-5

Ukuhlaziya Okuthuthukile1

• Izilinganiso Zamandla Ezizenzakalelayo

Ukusekelwa Kwephrothokholi1

• I2C, SPI

• RS-232, RS-422, RS-485, UART

• CAN, CAN FD, LIN, FlexRay

• I-MIL-STD-1553, ARINC 429

• I-I2S, LJ, RJ, TDM

• I-USB 2.0

Bonisa

• 11.6-inch (295 mm)

• Umbala we-HD (1920 x 1080) isikrini sokuthinta esinamandla

Isisindo

• 11.7 lbs (5.3 kg)

1 - Ongakukhetha futhi kuyathuthukiswa
2 - Mahhala ngokubhaliswa komkhiqizo

Bona i-spectrum analyzer eyakhelwe ngaphakathi emsebenzini.

I-spectrum analyzer eyakhelwe ngaphakathi

Kungakhathaliseki ukuthi uchwepheshe wokuhlaziya i-spectrum noma umsebenzisi ngezikhathi ezithile, uzokwazi ukubeka isihlaziyi se-spectrum esakhelwe ngaphakathi ukuthi sisebenze. Ngokungafani namanye ama-oscilloscopes anikezela nge-FFT "ukuhlaziywa kwe-spectrum", uchungechunge olu-3 lunohlaziyo lwe-spectrum lwangempela olwakhelwe ngaphakathi.

I-1 GHz esiphezulu imvamisa iza ejwayelekile kuwo wonke amathuluzi, i-3 GHz iyakhethwa

• Okuwukuphela kwezingxenyekazi zekhompiyutha zokuhlaziya i-spectrum ezihlanganisiwe zemboni ekilasini layo

• Umkhawulokudonsa obanzi wokuthwebula ofinyelela ku-3 GHz

Iyakwazi. Iyathuthukiswa.

Thola wonke amathuluzi okususa iphutha owadingayo ngokushesha noma wengeze uma uwadinga.

• Umkhawulokudonsa ungafika ku-1 GHz

• Iziteshi zedijithali: Inketho ye-MSO ingeza iziteshi eziyi-16 zedijithali

• I-Spectrum Analyzer ifika ku-3 GHz

• I-DVM/Freq Counter (mahhala ngokubhaliswa)

• Ijeneretha ezenzelayo/Yomsebenzi

• Ukuhlaziya Okuthuthukile

• Ukuqoshwa kwebhasi okulandelanayo nokucupha

• Izilinganiso Zamandla Ezizenzakalelayo

Bona amandla i-3 Series MDO engawaletha ebhentshini lakho.

Ukukhishwa kwe-firmware ka-March 2022 kunika amandla izici ezintsha

Ukuhlolwa Kwemaski / Umkhawulo

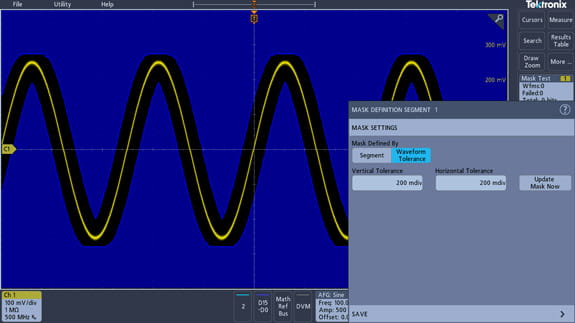

Njengengxenye yokuzibophezela kwethu ekuhlinzekeni ngezithuthukisi zomkhiqizo ezicelwe kakhulu amakhasimende ethu, i-oscilloscope engu-3 Series MDO manje ihlanganisa Ukuhlolwa Kwemaski/Umkhawulo. Lokhu kuvumela onjiniyela ukuthi bachaze izimo zokuqhathanisa eziyinkimbinkimbi ezikhomba izindlela zokuhluleka okunzima ukuzithola.

Ngalesi sibuyekezo esisha se-firmware, ungakwazi:

• Dala, hlela, futhi londoloza incazelo yemaski

• Setha ukubekezelela kwe-waveform kwemaski

• Lungiselela Isenzo Ngomcimbi

Usuvele unayo 3 Series MDO? Thola isibuyekezo sakho samahhala.
